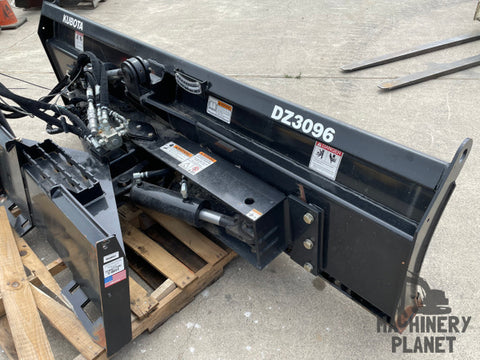

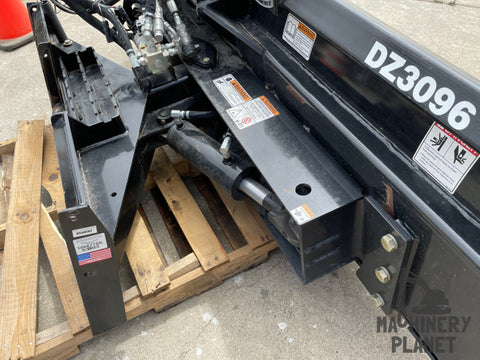

Kubota DZ3096. 96" heavy-duty Dozer Blade 6 way ( demo unit)

$ 7,800.00

Brand Machinery Planet

This product is unavailable

The DZ3096 heavy-duty Dozer Blades are well-suited for contractors or landowners who are preparing rough grade, moving material around the job site, pushing silage or manure or cutting or clearing ditches. Only available through Kubota Dealers.

Features & Benefit

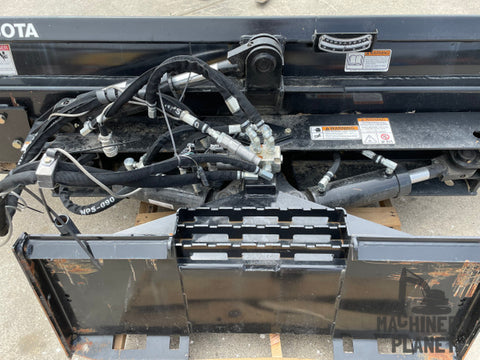

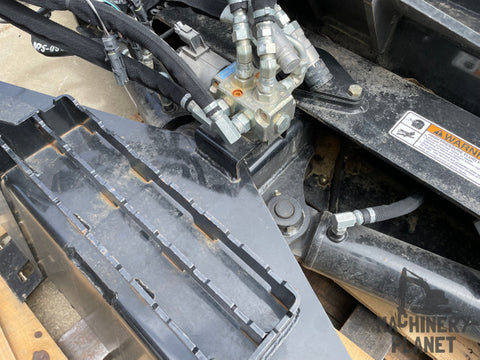

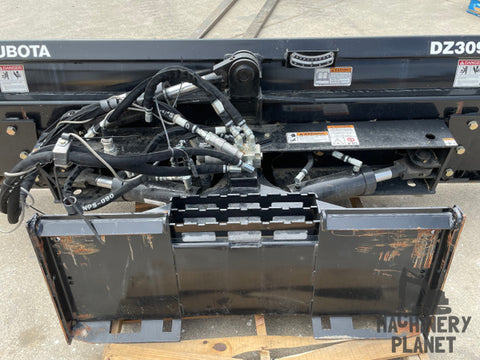

Universal Quick Attach-hitch, Meets Iso 24410: Design for quick and easy attachment to most skid steers and track loaders.
Blade Pivots Hydraulically 6-ways: Hydraulic adjustment provides for quick and easy blade positioning. Blade adjust 6-ways to meet the operator’s needs.

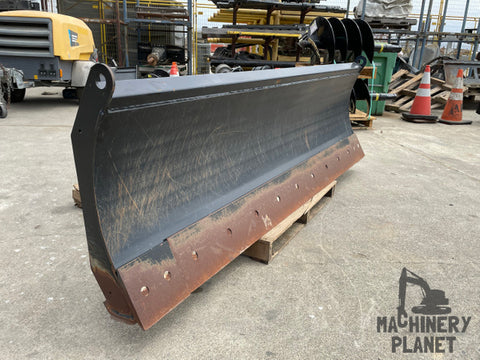

Reinforced 3/8" Moldboard With Fully Boxed Bracing: Provides added strength and durability.

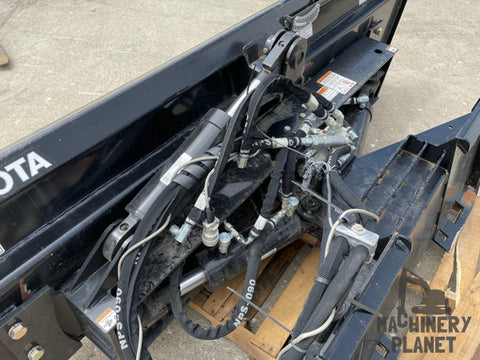

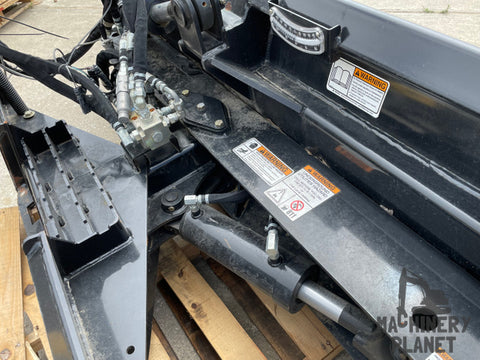

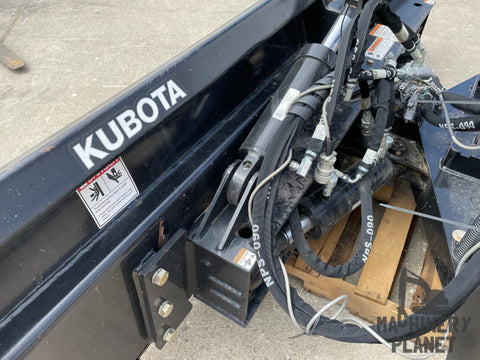

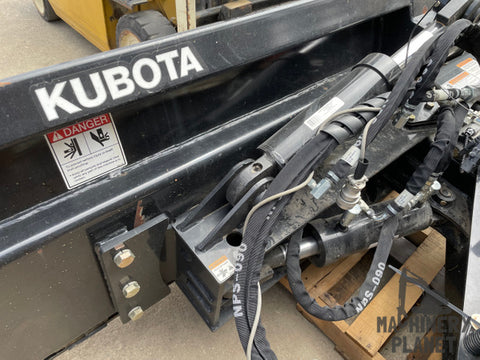

3 1/2" Double Acting Welded Hydraulic Cylinders: Easily enables angling up to 30 degrees left or right, and tilts 10 degrees up or down. The material can easily be distributed where you want it to go.
Standard Operator Mounting Step: Provides for safer and easier mounting into and dismounting from the skid steer cab.
26 1/2" Overall Moldboard Height: Provides ability to perform in deeper material conditions.

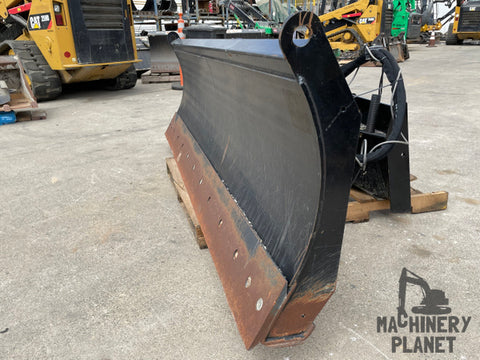

Replaceable Bottom Wear Edge: Protects underside of moldboard against wear.

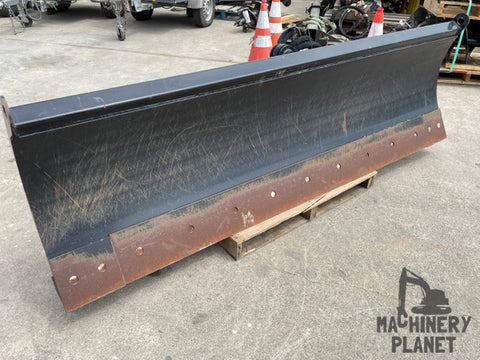

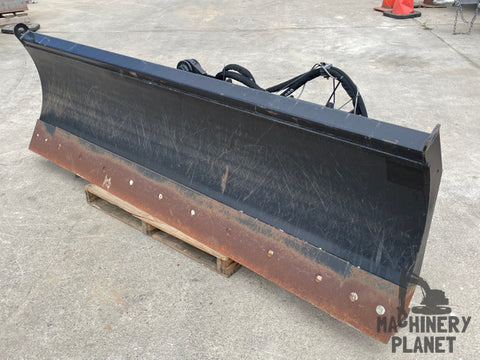

Reversible And Replaceable 3-piece Cutting Edge: 3-Pieces so that the end user can replace the entire cutting edge or just the high-wear corner sections to reduce maintenance cost.

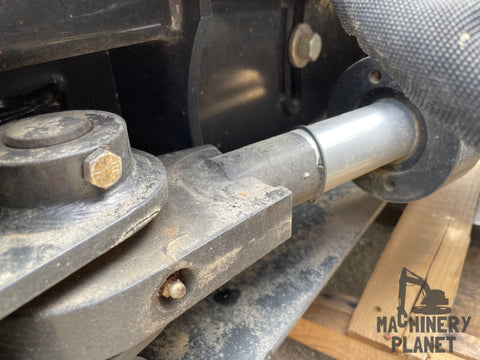

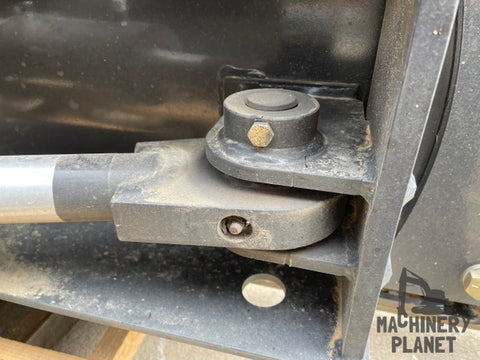

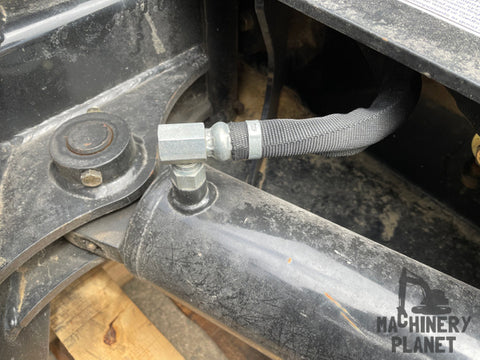

Heavy 3" Diameter Pivot Pins With Greasable Hardened Spring Bushings: Large diameter pivot pins stand up to rugged use. Lubrication helps protect against wear and rust seizing. Hardened bushings can be replaced if needed.

Specifications & Capacities

Weight: 1440 lbs (653.2 kg)
Hitch Type: Skid steer type Universal Quick-Attach, meets ISO 24410
6-way Blade Adjustment: Top of hitch plate tilts forward or backward, Blade angles left or right, Blade tilts clockwise or counterclockwise.
Maximum Blade Angle: 30 degrees left and 30 degrees right
Maximum Blade Tilt: 10 degrees clockwise and 10 degrees counterclockwise
Cylinder Size: 3 1/2" bore x 8" stroke
Maximum Hydraulic Pressure: 3500 psi (24.13 MPa)
Maximum Blade Cutting Width (@ straight across): 896" (2.44 m)
Maximum Blade Cutting Width (@ 30 degree angle): 83 1/4" (2.11 m)
Moldboard Thickness: 3/8" (10 mm)
Moldboard Height: 26 1/2" (67.3 cm)
Pivot Bushings: Replaceable and greasable, hardened spring bushings
Pivot Pin Sizes (angle Pin): 3" x 11 5/8" lg.
Pivot Pin Sizes (pivot Pin): 3" x 2 13/16" lg.
Cutting Edges - End Cutting Edges: 3/4" x 8" x 8 1/2" (1.9 cm x 20.3 cm x 21.6 cm)
Cutting Edges - Center Cutting Edge: 3/4" x 8" x 78" (1.9 cm x 20.3 cm x 1.98 m)
Wear Edge: 1/2" x 4" x 96" (1.3 cm x 10.2 cm x 2.44 m)
