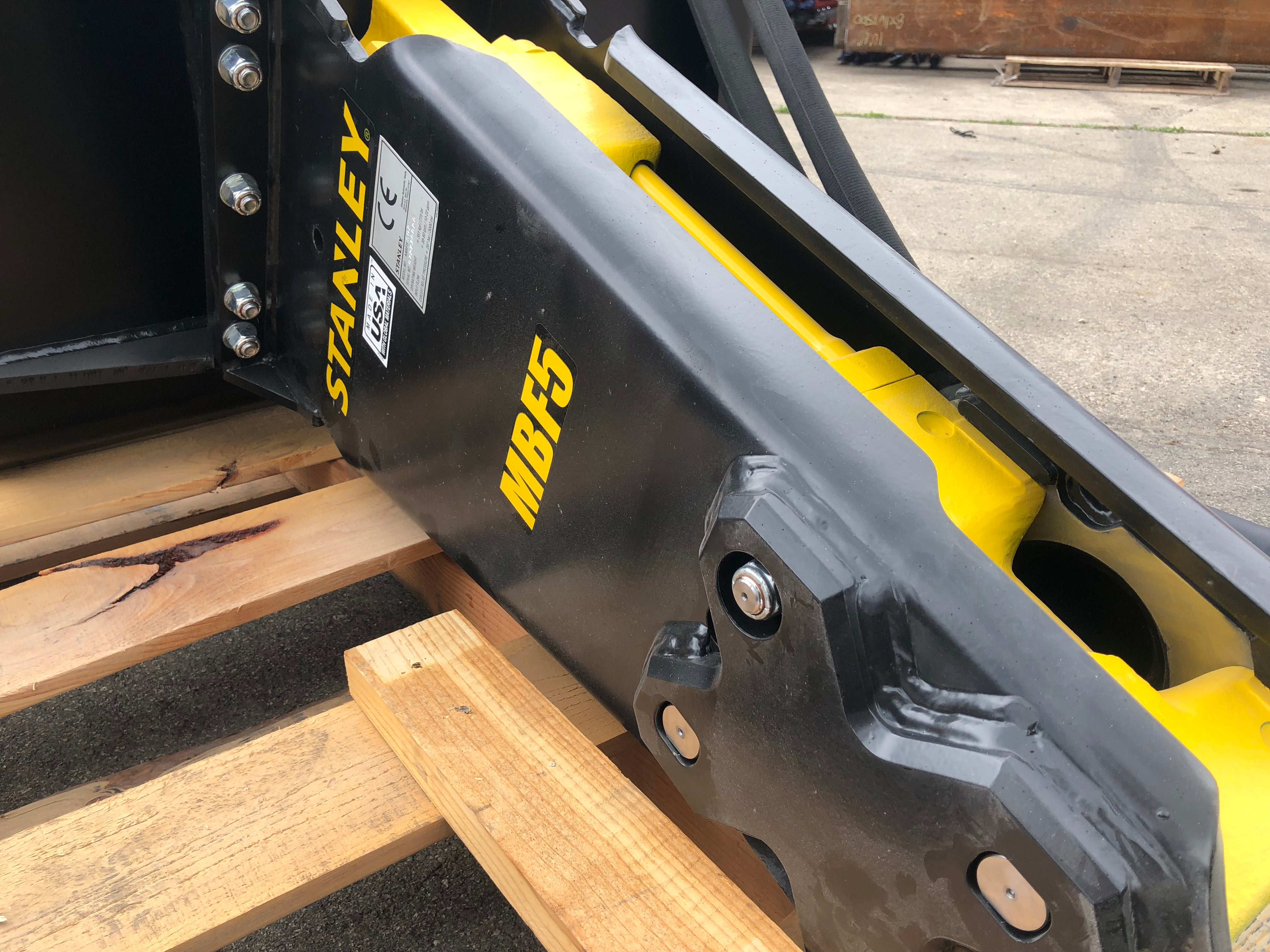

Stanley - MBF5S02 WITH SKID STEER BRACKET (Fixed 20 Degrees)
Stanley - MBF5S02 WITH SKID STEER BRACKET (Fixed 20 Degrees) Stanley - MBF5S02 WITH SKID STEER BRACKET (Fixed 20 Degrees) Stanley - MBF5S02 WITH SKID STEER BRACKET (Fixed 20 Degrees) Stanley - MBF5S02 WITH SKID STEER BRACKET (Fixed 20 Degrees) Stanley - MBF5S02 WITH SKID STEER BRACKET (Fixed 20 Degrees)

Stanley - MBF5S02 WITH SKID STEER BRACKET (Fixed 20 Degrees)

$ 12,880.00

Brand Machinery Planet

Impact Energy Class 550 ft/lb (750 J)

Blows Per Minute 650 - 1550

Flow Range 10-22 gmp (38-83 lpm)

Hydraulic Operating Pressure 1500-2000 PSI (100-140 bar)

System Relief Pressure (Minimum Cracking Pressure) 2800 PSI (180 bar)

Oil Temperature (Maximum) 190° F (88° C)

Hose Diameter (Minimum) 3/4 inch (19 mm)

Adapter Fitting Size and Type Male ORFS -12, 1-3/16 -12 UNF

Weight Skid Steer (with tool) 773 lbs (351 kg)

Weight Excavator (with tool) 465 lbs (210 kg)

Length Excavator (with tool) 48 inch (1220 mm)

Tool Diameter 2.7 inch (70 mm) Tool Working Length 15 inch (381 mm)

Main Accumulator Charge Pressure 200 (+/- 10) PSI (13.8 (+/- 0.7) bar)

Sound Power Level (LW) 126 dBA

Carrier Size - Skid Steer 4500-7000 lbs (2045-3182 kg)

Carrier Size - Mini Excavator 5000-13500 lbs (2273-6075 kg)

Carrier Size - Backhoe 500-13500 lbs (2273-6075 kg)
